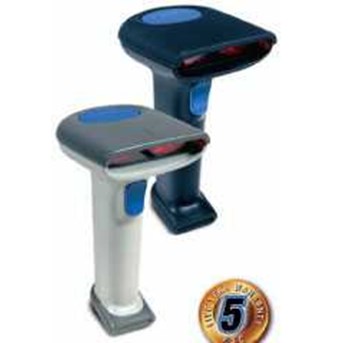

Detail Scanner Datalogic Qs 6500 Usb Or Ps-2
Scanner Linier Imager
Mechanical
Dimensions
Height: 6.” ( 16.5cm)
Width: 2.9” ( 7.4cm)
Length: 3.9” ( 9.9cm)
Weight: 6.4 oz. ( 181.4 g)
Environmental
Temperature Rating
Operating: 32° to 122° F ( 0° to 50° C)
Storage: -40° to 158° F ( -40° to 70° C)
Humidity:
Operating: 5 to 95% NC
Storage/ Transport: 5 to 95% NC
Ambient Light Immunity
Artificial & Sunlight: 86, 000 Lux
Shock: Multiple 5’ ( 1.5m) drops to concrete
Water & Dust: Sealed to resist airborne dust & particulates
Electrical
Operating Voltage: + 4.5 to 14VDC ± 5%
Operating Current: 300mA @ 5VDC
Idle Current: 200mA @ 5VDC
Optical
Light Source: 630nm Visible Red Diode
Scan Rate: 450 scans/ sec max
Sensor: 2048 pixel linear imager
Scan Width: 6.3” ( 16.5cm) @ 7” ( 17.8cm) from nose
Resolution: 5 mils ( .13mm)
Print Contrast: 30% or greater
Pitch: ± 60°
Skew: ± 55°
Depth of Field: Refer to Chart below
DEPTH OF FIELD*
Typical Range Comparisons
LABEL
DENSITY
RANGE* *
5 mil Linear 2.0” to 5.0” ( 5.1 to 12.7cm)
7.5 mils 1.0” to 7.0” ( 2.5 to 17.8cm)
10 mils 0” to 12” ( 0 to 30.5cm)
13 mils 0” to 14” ( 0 to 35.6cm)
20 mils Up to 24” ( 61.0cm)
40 mils Up to 40” ( 101.6cm)
* Depth of Field specifications are for 1D models only. PDF models will have
slightly shorter Depth of Field ranges.
* * Minimum distance determined by symbol length and scan angle.
Printing resolution, contrast, and ambient light dependent.
Communications
RS-232
Keyboard Wedge
IBM 46XX
IBM USB
USB
Decoding Capability
1D Versions
UPC A, E / EAN 8, 13 / JAN 8, 13
Add-ons ( sub 2 or P2, sub 5 or P5 & C128)
RSS-14, Expanded, Stacked, Limited
ISBN / Bookland EAN
Code 39 ( with full ASCII)
Pharmacode 39
Code 128
Code 93
Interleaved 2 of 5
Standard 2 of 5
IATA
Code 16K
Code 11
Codabar/ NW7
UK/ Plessey
MSI/ Plessey
PDF Models support these additional symbologies:
RSS / UCC / EAN Composites
PDF-417
Micro-PDF
Safety & Regulatory
Electrical: Complies to EN60950, CSA60950, UL60950
Emissions: Complies to: FCC-A; EN 55022-B; BSMI 13438;
AS/ NZS 3548; VCCI-B, ICES-003
Jarak Tembal 25 - 30 cm
Support Barcode 2 Dimensi ( PDF 147, Micro PDF 417 )
Garansi 1 Tahun
Interfice USB / KBW / RS
